FBR guide rails

After 2 years of selling external blinds, we are introducing a new type of guide rails for full flush installation and adapters for partial flush installation.

The FBR guide rails represent the next product development stage for the C80 and Z90 external blinds.

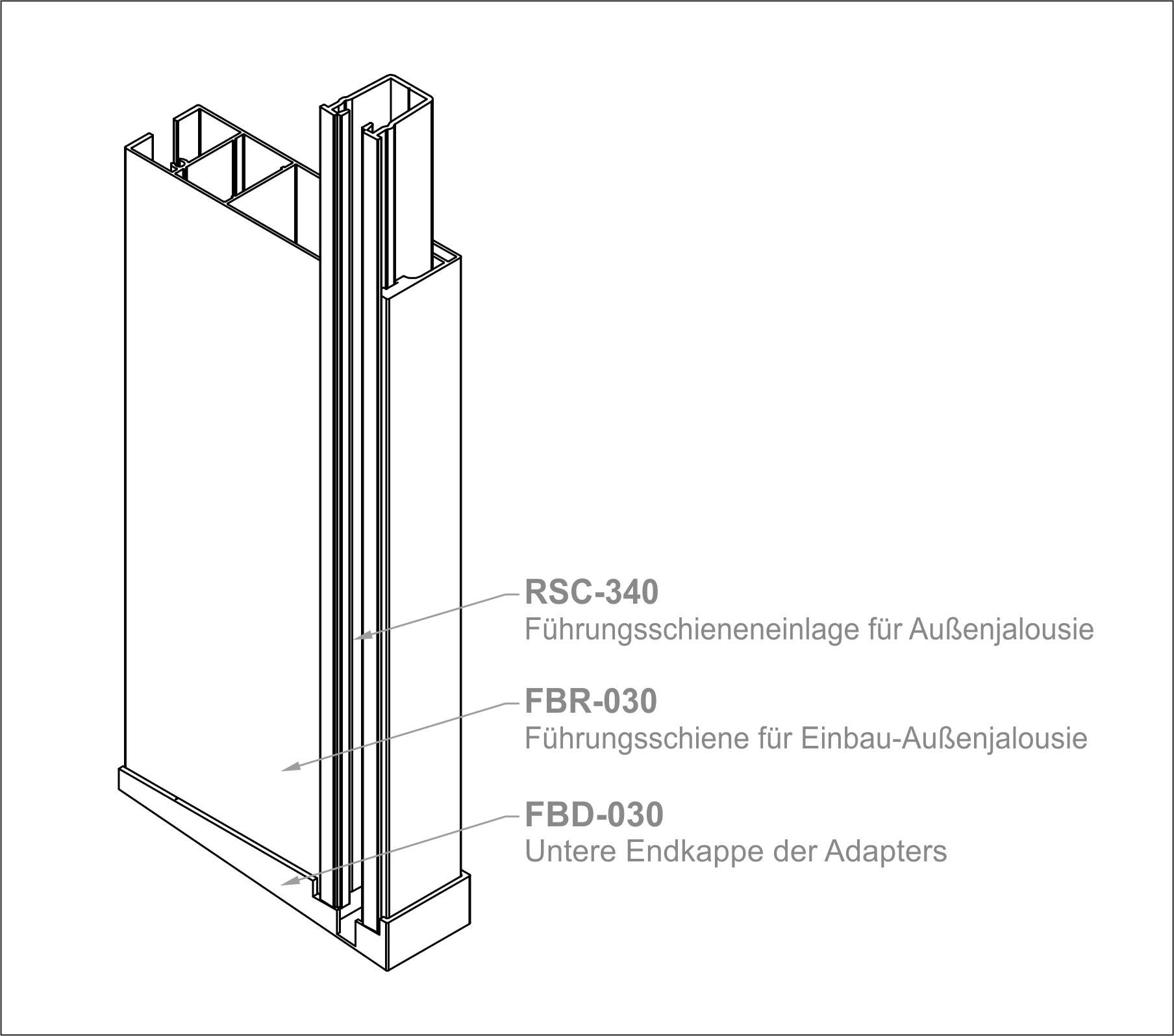

They do not require additional brackets, and thanks to the use of PVC inserts, they can be fully integrated.

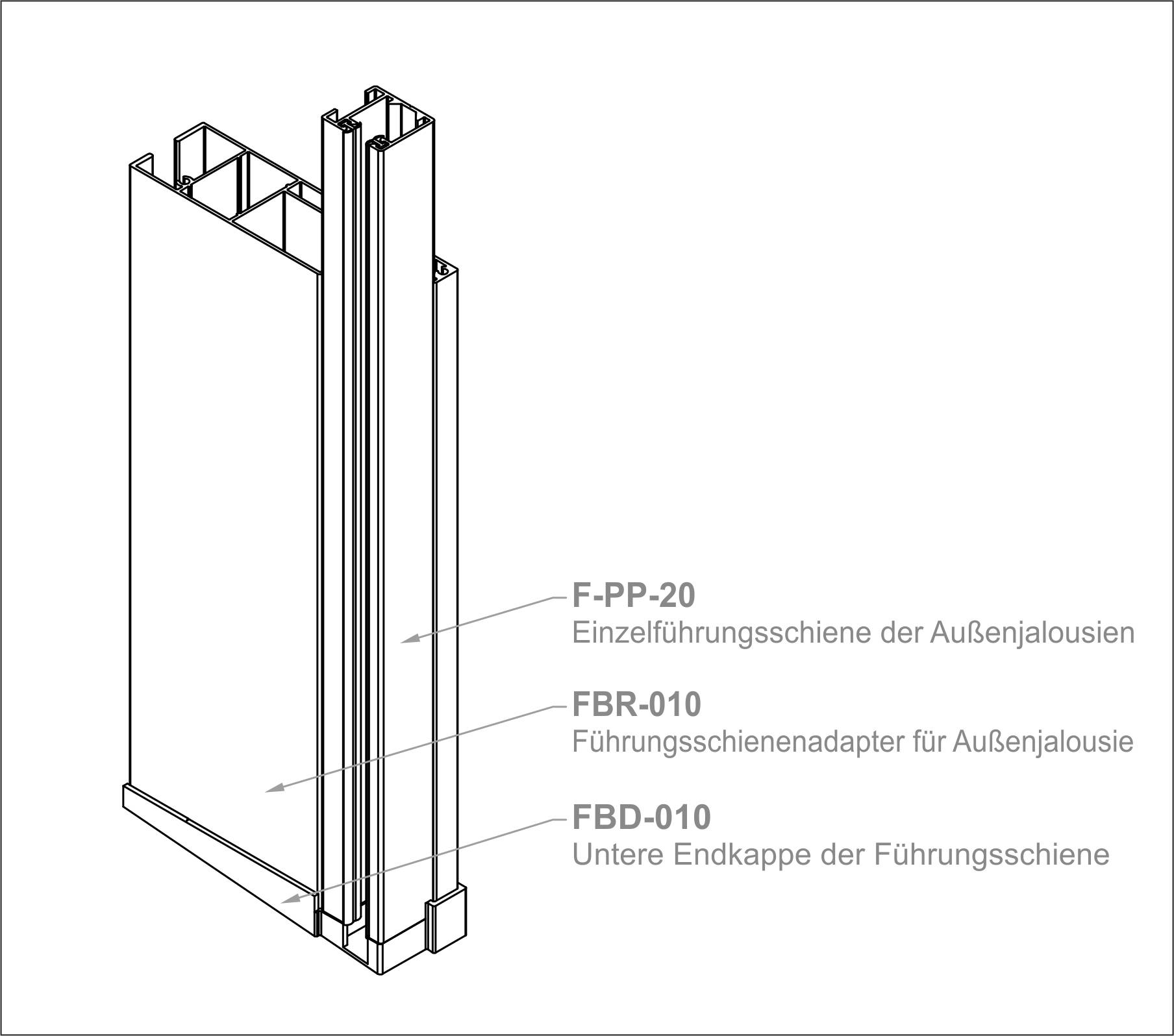

We also offer FBR adapters for existing single guide rails. This solution allows for partial flush installation of guide rails while maintaining the correct aesthetic.

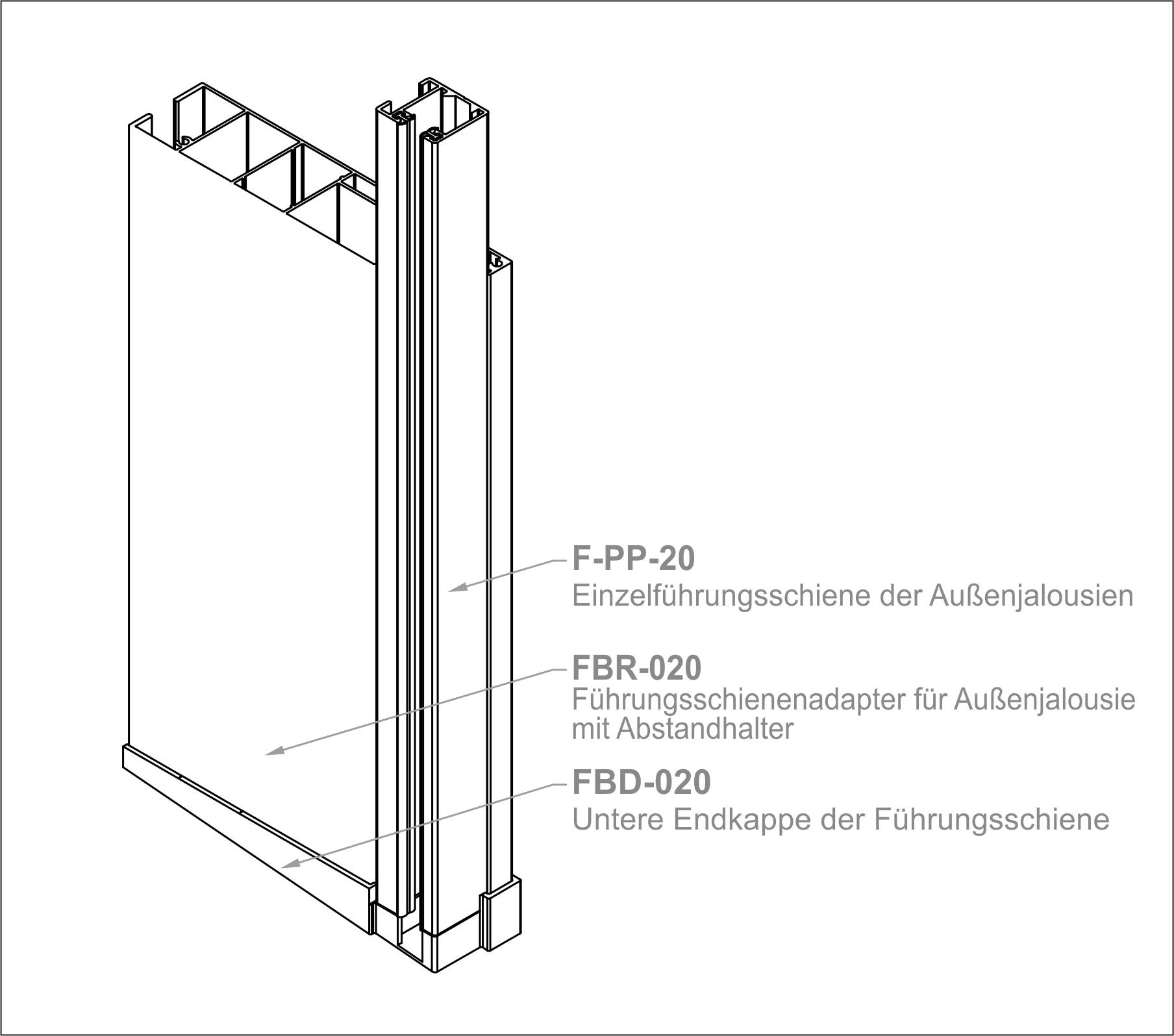

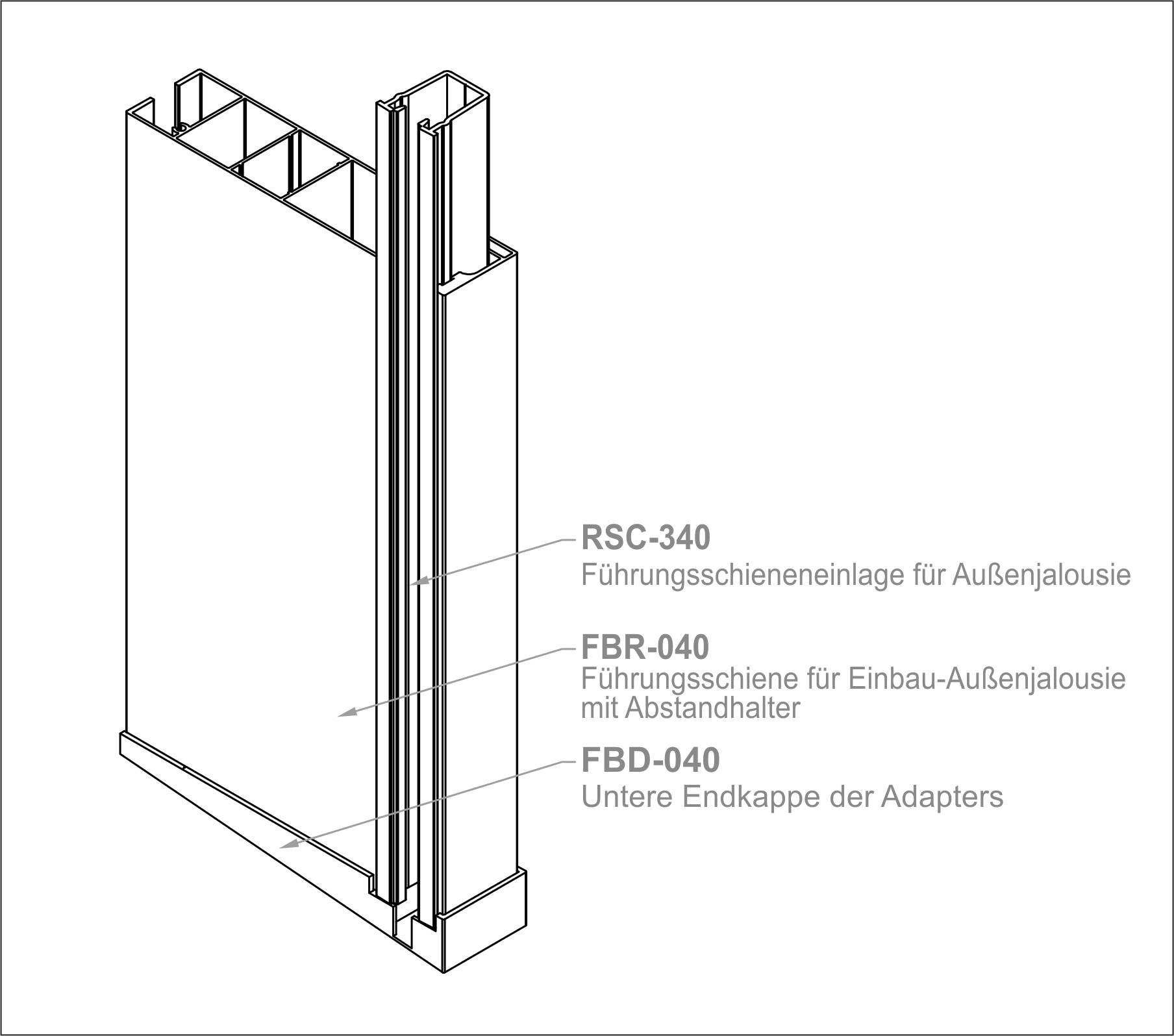

The guide rails and FBR adapter are also available with a gap for customers who use insulation between the rear cover plate and the facade.

*RSC-340 and F-PP-20 are not included in the price per linear meter of the FBR.

When using FBR guide rails or adapters, wall-mounted supports 150-200 for the protective cover must be used for both C80 and Z90 slats.

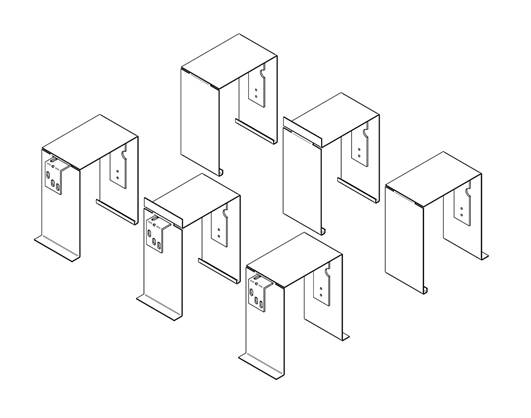

As a result, new types of protective covers with a depth of 154 mm for the outer protective cover and a new rear protective cover with a 20 mm offset are now available in the offer.

*Assemblies of outer and rear protective covers with adjustable wall brackets have been used. Installation and hole for the wall bracket are on the customer side.

For further details and technical aspects, please refer to our catalogs on www.portosrollladen.de under “Download” in the “Raffstoren” section or directly via this link: https://www.portosrollladen.de/ZF3000DE_druki_kat
