MX1200
Top mounted TP1000K® shutter
TP1000K is a system that can be installed on wide window frames, even up to 202 mm (with broadening to 264 mm). Using an expanding element we increase the depth of the box by 31 mm or 62 mm. This system has the capability of creating a revision cover from the bottom (with a build-up box from the inside), or the front (during the installation on a wide window frame). The possible service is both manual – with the use of a belt – and electric – with the use of a switch or a remote control. It has two-chamber load carrying walls that provide better thermal insulation and their high stiffness makes it impossible to bend the box during the installation.
The TP1000K shutter with an open revision cover from the bottom
The TP1000K shutter with an open revision cover from the bottom
The TP1000K shutter with an open revision cover from the front
The TP1000K shutter with an open revision cover from the front

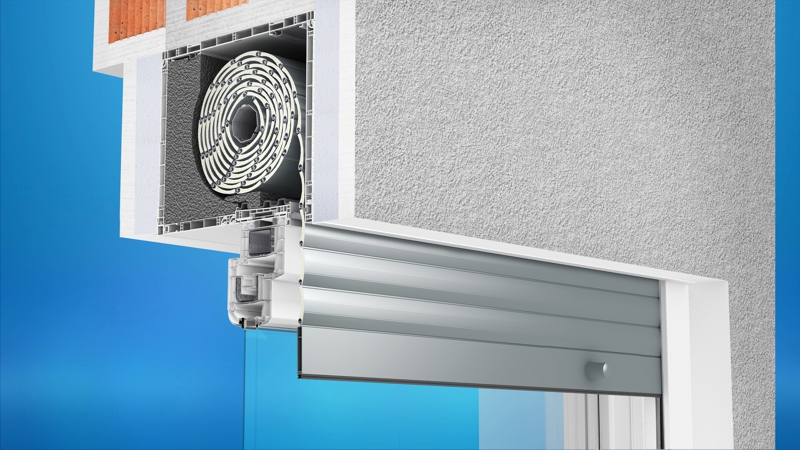

The TP1000K shutter is installed from the internal and external side. Front profiles additionally rifled and additionally equipped with plaster slats facilitate the installation.
The revision cover in such a build-up installation occurs from the bottom, and the operation of the shutter takes place from the inside of the room.
The TP1000K shutter is installed from the internal and external side. Front profiles additionally rifled and additionally equipped with plaster slats facilitate the installation. The revision cover in such a build-up installation occurs from the bottom, and the operation of the shutter takes place from the inside of the room.

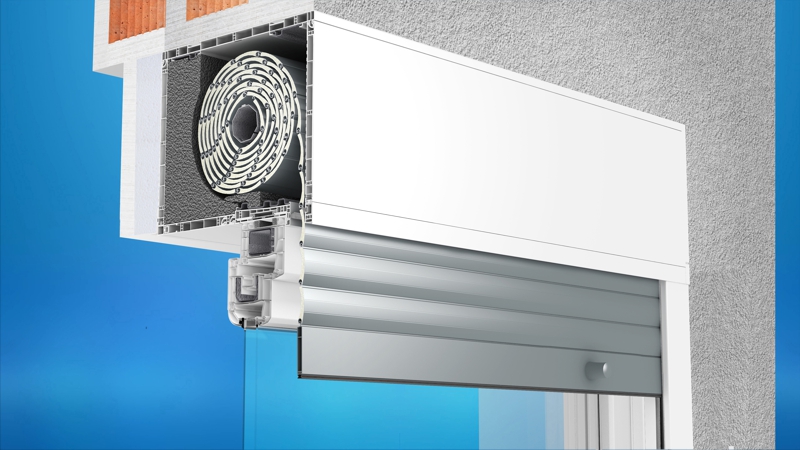

The TP1000K shutter is installed from the internal side. The internal front profile is grooved and equipped with a plaster slat. In order to have a more aesthetic look, the external front profile is smooth.
The revision cover in such a build-in installation occurs from the bottom and the operation of the shutter takes place from the inside of the room.
The TP1000K shutter is installed from the internal side. The internal front profile is grooved and equipped with a plaster slat. In order to have a more aesthetic look, the external front profile is smooth. The revision cover in such a build-in installation occurs from the bottom and the operation of the shutter takes place from the inside of the room.

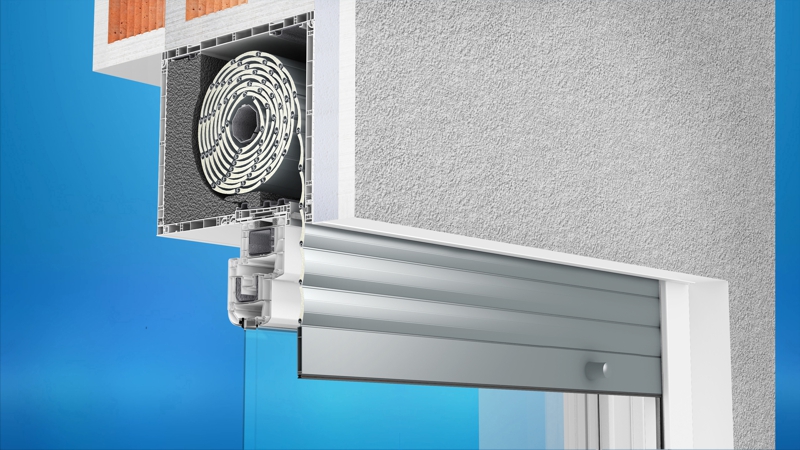

The TP1000K shutter installed from the outer side. The external front profile is grooved and equipped with a plaster slat. In order to have a more aesthetic look, the external front profile is smooth.
The selection of a revision cover results in the way of installation of boxes. The revision cover in such a build-up installation occurs from the bottom or from the front and the handling of the shutter takes place from the inside of the room.
The TP1000K shutter with a revision cover from the front may be installed only from the outside. On the other hand, with the cover from the bottom it may be installed from the outside and from the inside.
Additionally, the front elements of the shutter may be grooved and additionally equipped with plaster slats facilitating the building up of boxes.
The TP1000K shutter installed from the outer side. The external front profile is grooved and equipped with a plaster slat. In order to have a more aesthetic look, the external front profile is smooth. The selection of a revision cover results in the way of installation of boxes. The revision cover in such a build-up installation occurs from the bottom or from the front and the handling of the shutter takes place from the inside of the room. The TP1000K shutter with a revision cover from the front may be installed only from the outside. On the other hand, with the cover from the bottom it may be installed from the outside and from the inside. Additionally, the front elements of the shutter may be grooved and additionally equipped with plaster slats facilitating the building up of boxes.

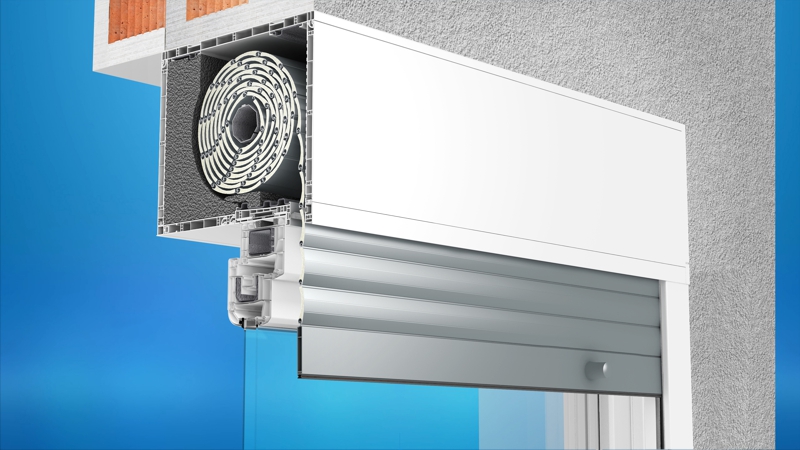

The TP1000K shutter is non-built-up on both sides. For aesthetic reasons the front profiles on both sides are smooth.
The revision cover in such an installation occurs from the bottom or from the front and the handling of the shutter takes place from the inside of the room.
The TP1000K shutter is non-built-up on both sides. For aesthetic reasons the front profiles on both sides are smooth. The revision cover in such an installation occurs from the bottom or from the front and the handling of the shutter takes place from the inside of the room.
